Is WZ8 white or brown?

Per ISO 6848, WZ8 (0.70-0.90% ZrO2) is white; WZ3 (0.15-0.50% ZrO2) is brown. Older charts and some regional habits swap them - always confirm by the text designation on the label.

When should I choose WZ8 over WP for aluminium?

When AC current is high, duty is long, or weld cleanliness is inspected. WP remains fine for light AC work at lowest cost.

Do you ship WZ8 in 2.4 mm?

Yes - 2.4 x 175 mm is one of our photographed stock lots, alongside 3.2 x 175 mm.

WZ8 · white tip

WZ8 Zirconiated Tungsten Electrode (White Tip, 0.8% ZrO2)

For AC aluminium work above the comfort zone of pure tungsten, zirconiated is the upgrade: the zirconia addition keeps the ball stable, resists splitting and spitting tungsten into the puddle, and tolerates higher AC current.

White tip per ISO 6848. Note the common confusion: white is WZ8; the brown band belongs to WZ3 (0.15–0.50% ZrO₂). Our boxes and labels state the designation in text as well as colour.

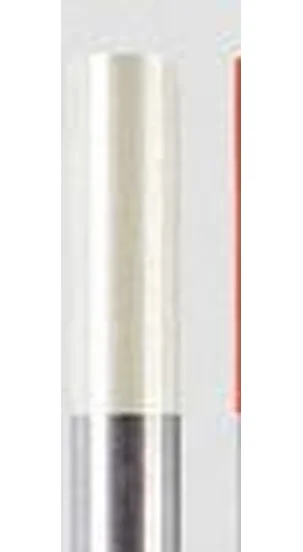

Zirconiated tungsten electrode WZ8 with white ISO 6848 colour band, tip colour reference

Tip colour per ISO 6848.

Specification at a glance

ISO 6848 designation	WZ8 — zirconiated, 0.70–0.90% ZrO₂
Colour code	White (brown = WZ3, a different grade)
AWS A5.12 class	EWZr-1 family (confirmed on documents)
Current type	AC primary; limited DC suitability
Strength	Stable balled tip, high AC current, low weld contamination risk
Diameters	1.6 / 2.0 / 2.4 / 3.2 / 4.0 / 4.8 mm (others on request)
Lengths	150 mm, 175 mm
Surface	Ground finish, h7, length ±1 mm
Packing	10 pcs tube box; OEM or neutral carton
MOQ	100 pcs, mixed

Where WZ8 earns its place

Heavy AC aluminium

Plate, castings and thick sections on AC: WZ8 holds its ball where WP would over-ball or spit.

Cleanliness-critical welds

Aerospace-adjacent and food-industry fab shops choose zirconiated to keep tungsten inclusions out of radiographs.

Not a DC electrode

On DCEN the zirconiated ball behaves poorly; for DC use WL20 or WC20.

In our photos

The white-tipped boxes labelled “0.8% Zirconiated (WZ8)” on our quality page are actual shipped stock — 3.2×175 mm lots among them.

Real stock, photographed as shipped

No studio renders. These are the tube boxes, labels and cartons that leave our Baoji packing room — the same ones your incoming inspection will open.

Stacks of plastic tube boxes with 10 tungsten electrodes each in the packing room — Ground-finish electrodes packed 10 pcs per tube box, stacked for order picking.

Two tube boxes labelled 1.6 mm WL20 lanthanated and 3.2 mm WZ8 zirconiated, 10 pieces ground finish, ANSI AWS A5.12M-98 and ISO 6848 — Export labels state size, type, piece count and the standards: ANSI/AWS A5.12M, ISO 6848.

Row of labelled tungsten electrode tube boxes lined up for pre-shipment counting — Pre-shipment check row: every box counted and matched to the packing list before cartoning.

Neutral white inner boxes hand-marked WL20 1.6 and WZ8 3.2 — Neutral white inner boxes, hand-marked by type and diameter for mixed orders.

Cartons of WL20 1.6 mm and WZ8 3.2 mm electrodes stacked on a table before loading — Cartons stacked and ready: WL20 1.6 mm and WZ8 3.2 mm on one pallet.

Warehouse shelf with blue tube boxes of WZ8 2.4 x 175 mm tungsten electrodes — Tube boxes on the warehouse shelf — WZ8 2.4×175 mm lot, marked and dated.

Shop-floor clip: counting and boxing a lot before export cartoning.

Send your electrode list today

Type, diameter × length, quantity and packing — mixed sizes welcome. You get a specification-confirmed quotation with lead time, normally within 24 hours.
